Apply Dynamic Configurations to Devices

Applying configuration parameters to a device consists of three primary steps:

  1. Define labels for the device.
  2. Create configuration.
  3. Apply configuration parameters (created in step 2) to the device.

Defining labels for devices

You can tag your devices with as many labels as you need. Labels are key-value pairs that help you associate configuration parameters with a group of devices or a particular device.

Make sure that the keys of all the labels of a device are unique.

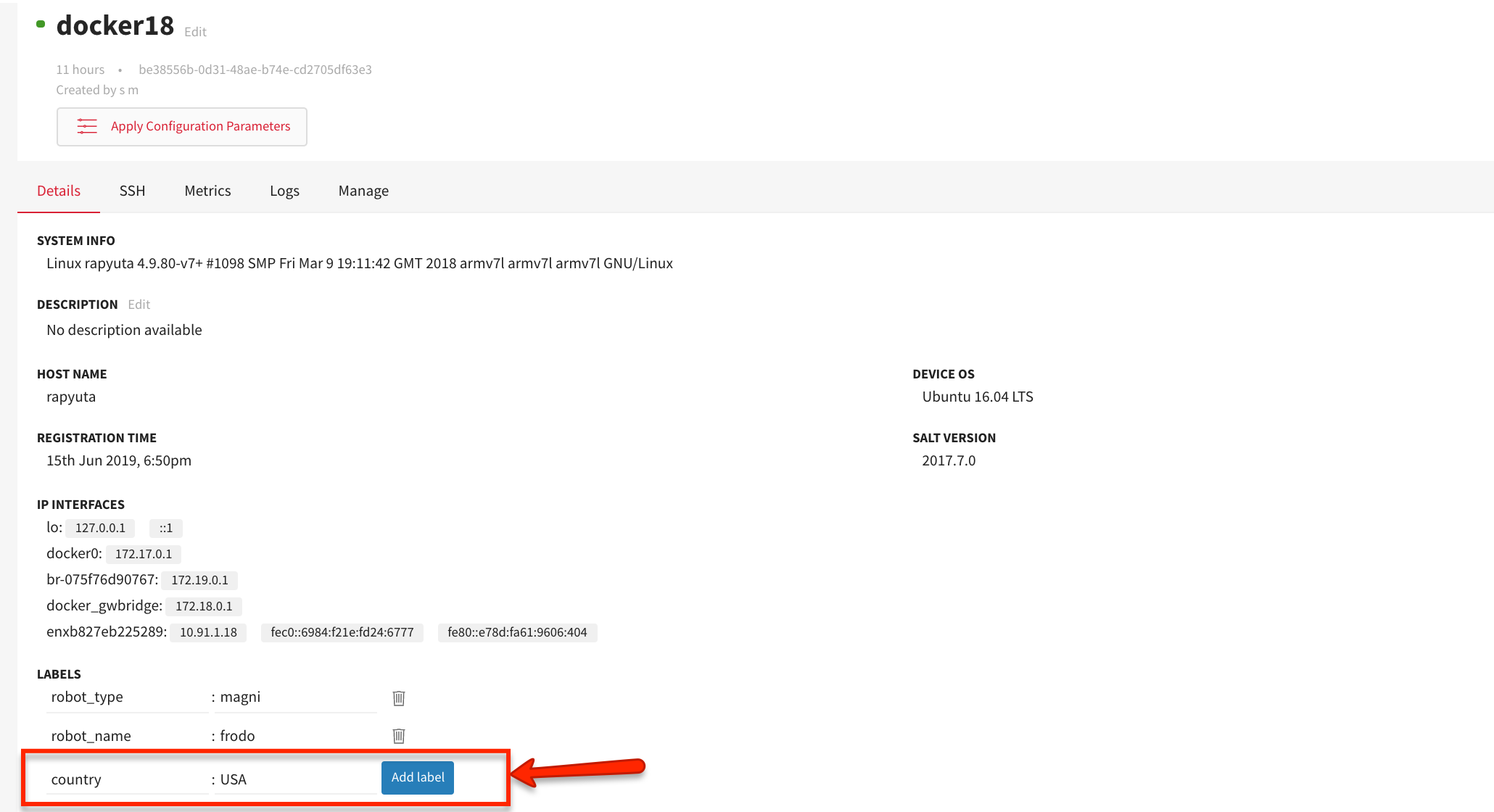

To add a new label to a device, select the device from the DEVICES panel on the left navigation bar.

  1. On the Details tab, find for the LABELS section.
  2. Enter the key of the label to the left of the :
    In this case, the key is country
  3. Enter the value of the label to the right of :
    In this case, the value is Japan
  4. Click Add label

apply configuration parameters

You can modify existing labels by changing their keys or/and values and clicking Save.

You can delete a label by clicking on the delete icon.

Creating configuration parameters

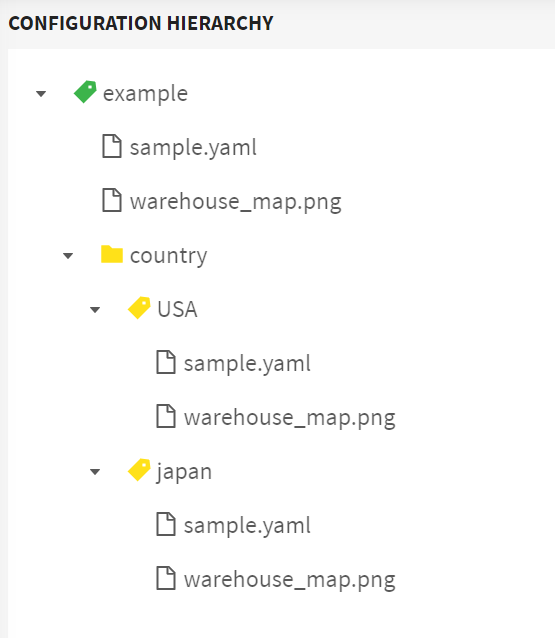

You will create a new configuration, say, example as shown in the figure below: example configuration

  1. Click CONFIGURATIONS on the left navigation bar.
  2. Click ADD NEW CONFIGURATION.
  3. Type in a name for the configuration, say, example.
  4. Hover over the root node, example, to view options to add a new configuration file.
  5. Click Add file. Enter a name for the file, say, sample. Click CONFIRM.

    Observe that the platform automatically appends .yaml extension to the file.

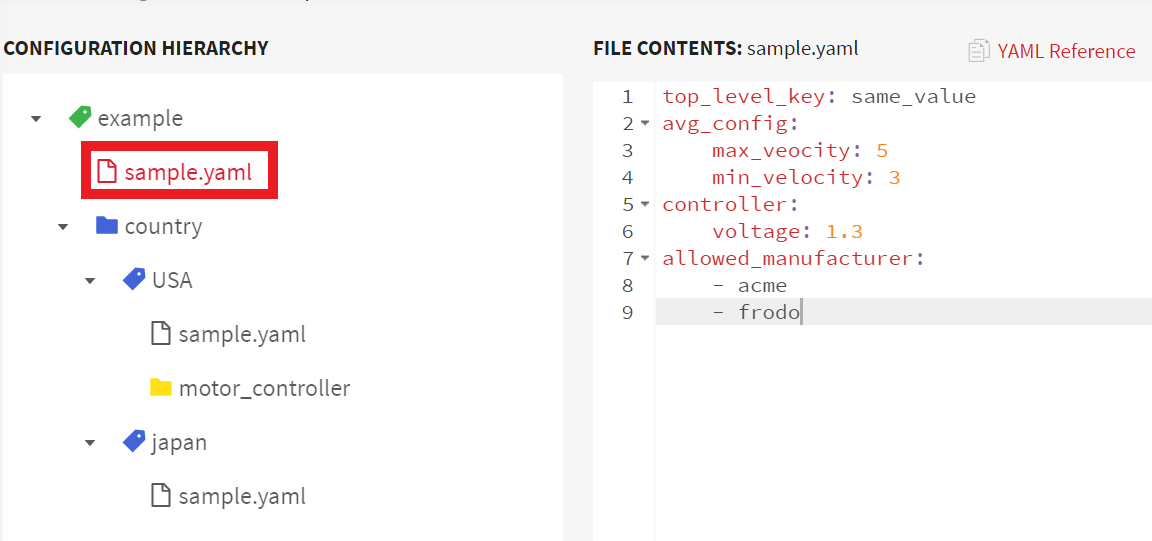

  6. Define the following base parameters as shown in the figure below. base parameters
  7. Hover over the root node again to view options to add a new attribute node.
  8. Click Add attribute. Give it a name, say, country. Click CONFIRM.
  9. Hover over the country attribute to view options to add new value nodes.
  10. Click Add country value. Give it a name, say, USA. Click CONFIRM. Similarly, add another country value and give it the name Japan.

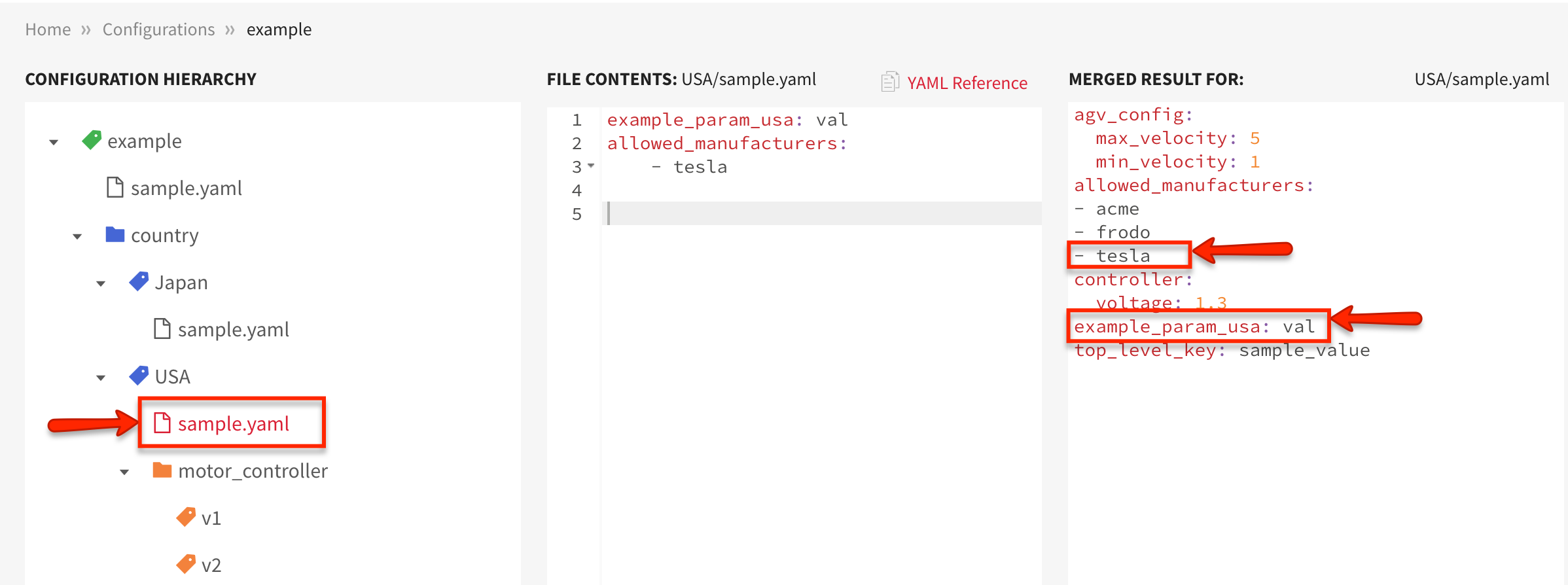

  11. Suppose that the manufacturer Tesla has signed the contract deal to manufacture the AGVs in the USA region. You can add Tesla to the existing list of allowed_manufacturers. You will have to define sample.yaml under the USA value, which will extend the list of base parameters. The resultant file after merging the base parameters in example/sample.yaml and the newly added parameters in USA/sample.yaml will include tesla in addition to those already present. sample file of USA

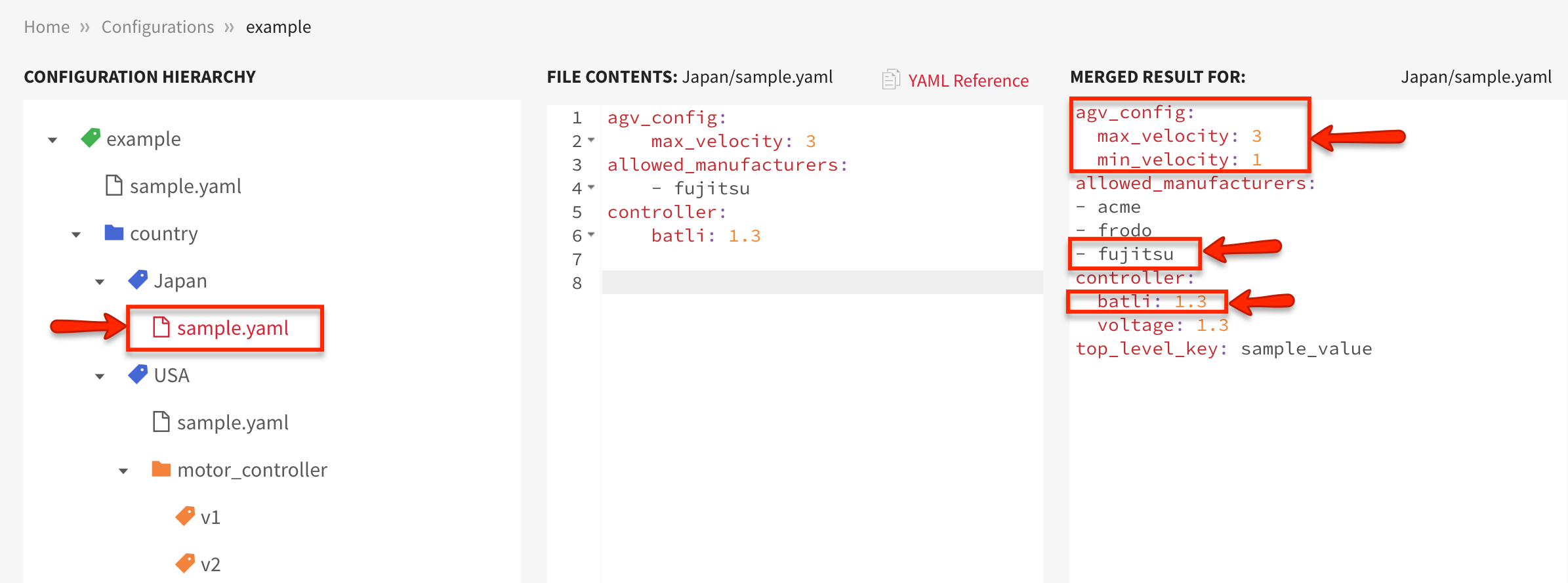

  12. Suppose that the regulation in Japan requires you to limit the maximum velocity of an AGV from 5m/s to 3m/s. You can override the max_velocity of the AGV by assigning a new value to it. You will have to define sample.yaml file under the Japan value, which will include the max_velocity parameter, but with its default overridden. The final parameters file is a result of merging the base parameters (example/sample.yaml) and the overridden parameters (Japan/sample.yaml). sample file of Japan

Applying configuration parameters to devices

Labels of a device help in associating it with a set of configuration parameters. The configuration parameters are resolved by matching device labels with attributes defined in configuration hierarchies. There are two ways of applying parameters to devices.

  1. If you want to apply a set of parameters to multiple devices at once.
    Hover over the attribute node whose configuration parameter files you want to apply to a group of devices. Then, click on Apply option (a check or tick mark).
  2. If you want to aggregate all parameters across all configuration hierarchies and then apply them to a single device.
    Select the device from DEVICES panel on the left navigation bar. Click on Apply Configuration Parameters.

Rules for writing configuration parameters

There are a set of rules that you must adhere to when writing a configuration parameters file. They are:

  1. A space character always follows a colon (:) and a hyphen (-). For instance,

    # Invalid parameters
    a:b
    list:
        -a
        -b
    # Valid parameters
    a: b
    list:
        - a
        - b

  2. Start your configuration parameters file with maps.

    # Invalid parameter file example
    abc      # string
    # Invalid parameter file example
    [a, b]   # list
    # Valid parameter file example
    a:
        b: c
        d: e
        f:
           - g
           - h

  3. If you add a new item to a default list parameter, it is appended to the list.

    # base parameters file
    list:
        - a
        - b
    # extending parameters file
    list:
        - c
    # merged resultant file
    list:
        - a
        - b
        - c

  4. If you modify a default parameter’s value, the new value overrides the old value.

    # base parameters file
    a: b
    # overriding parameters file
    a: e
    # merged resultant file
    a: e
