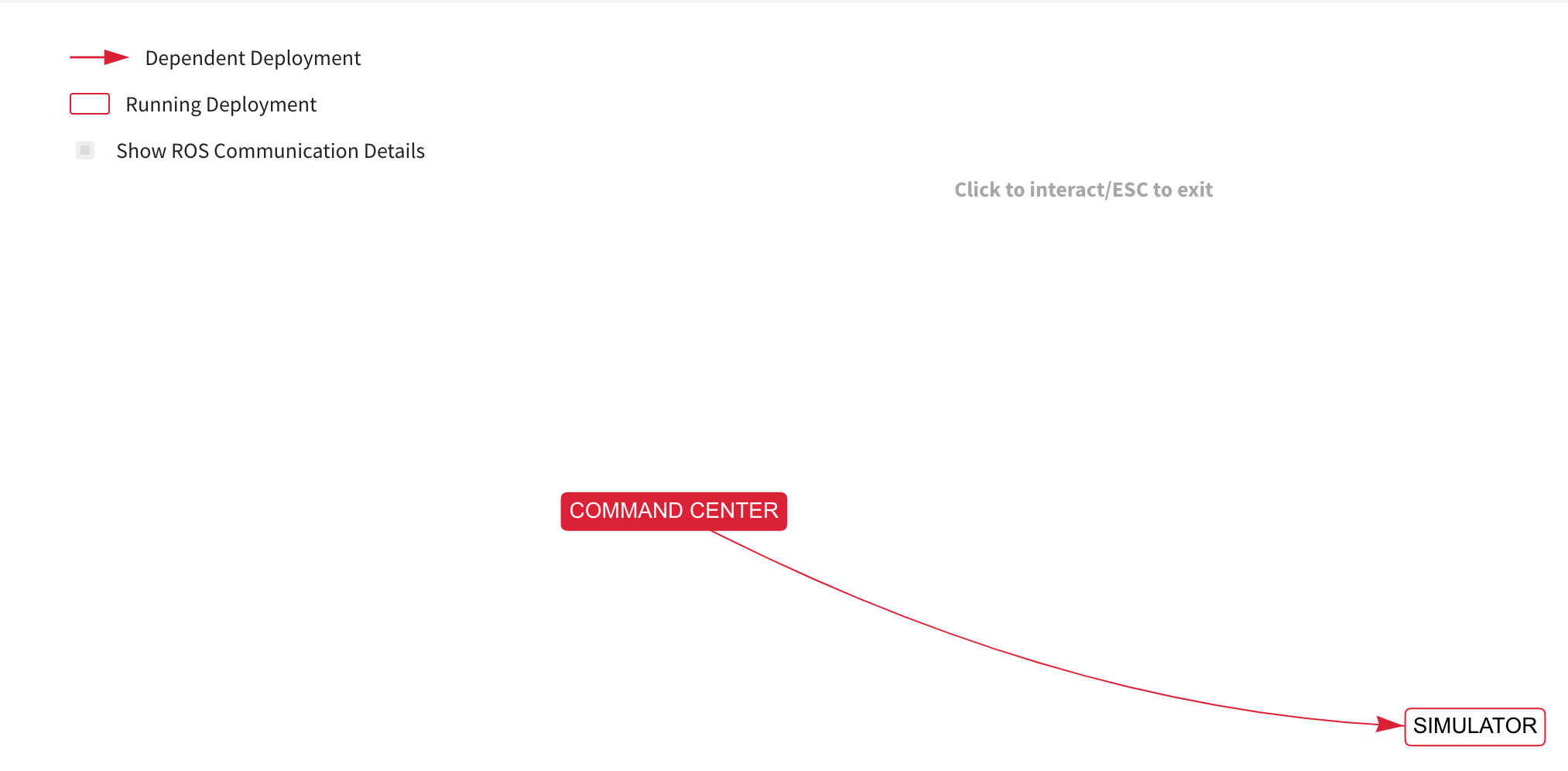

A dependency graph is a set of deployments and the relationships between them. The rectangular node of the graph represents a deployment (running or non-running). For example, consider the dependency graph shown below. The COMMAND CENTER and SIMULATOR are running deployments. The weighted red arrow connecting the two deployments indicates the relationship between them.
There are three types of relationships:
- Dependent Deployment
A rectangular node that is highlighted in red color is the running deployment
whose Details you are currently viewing. The arrow points from a deployment to the deployment(s) it depends on.
For instance, in the above graph, COMMAND CENTER depends on SIMULATOR, that is, SIMULATOR is a
dependency (or “dependent deployment”) of COMMAND CENTER.
- ROS topic publisher-subscriber
A green arrow represents one ROS Topic. It points from the deployment providing (publishing) the topic
to the deployment consuming (subscribing to) the topic.

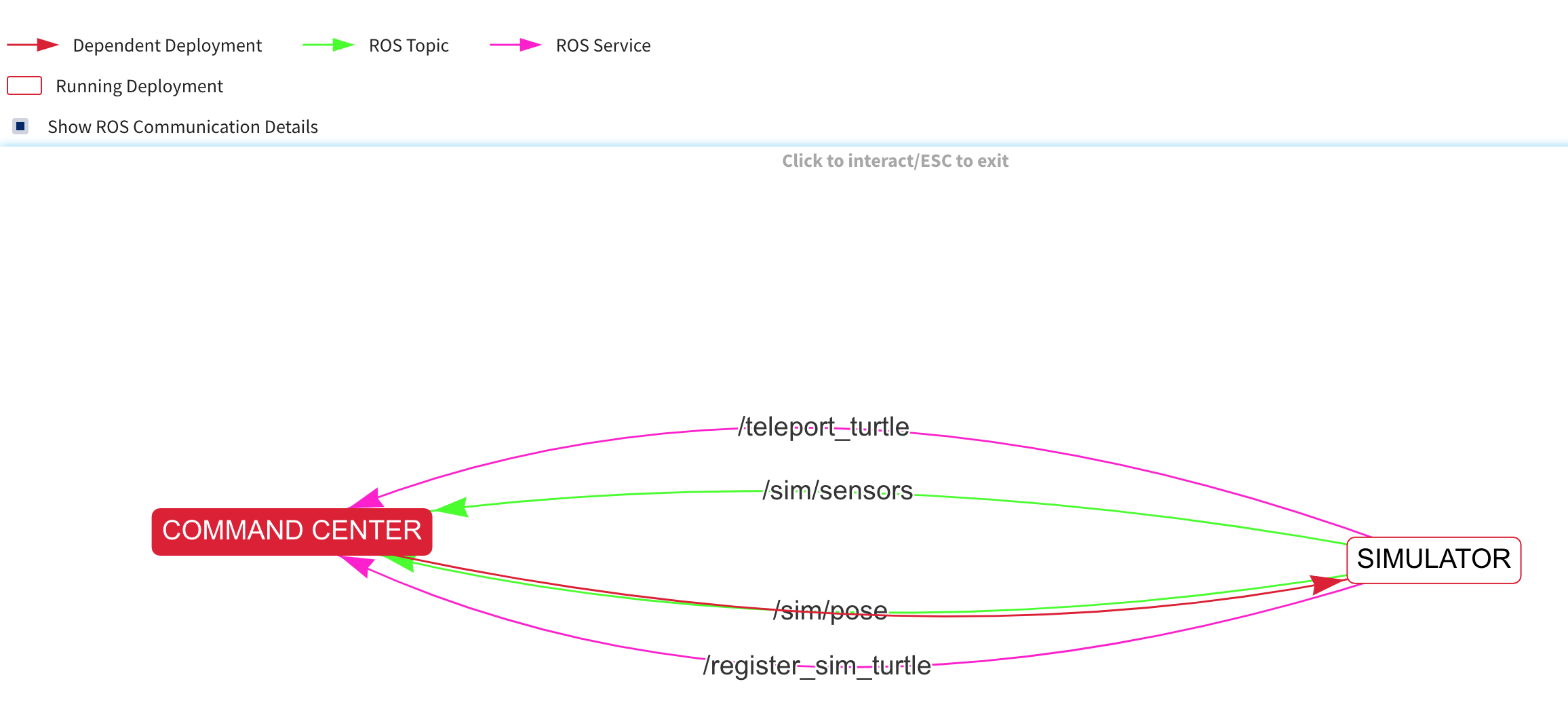

For example, SIMULATOR publishes /sim/sensors and /sim/pose while COMMAND
CENTER subscribes to the topics.
To view ROS details of a dependency graph, select Show ROS Communication Details checkbox.
- ROS service request - reply
A pink arrow represents one ROS Service. It points from the deployment providing the service
to the deployment consuming (calling) the service.
For instance, the COMMAND CENTER requests the /teleport_turtle and
/register_sim_turtle service from the SIMULATOR.
- ROS action client - server
A yellow arrow represents one ROS Action. It points from the deployment providing the action (server)
to the deployment consuming (client) the action.

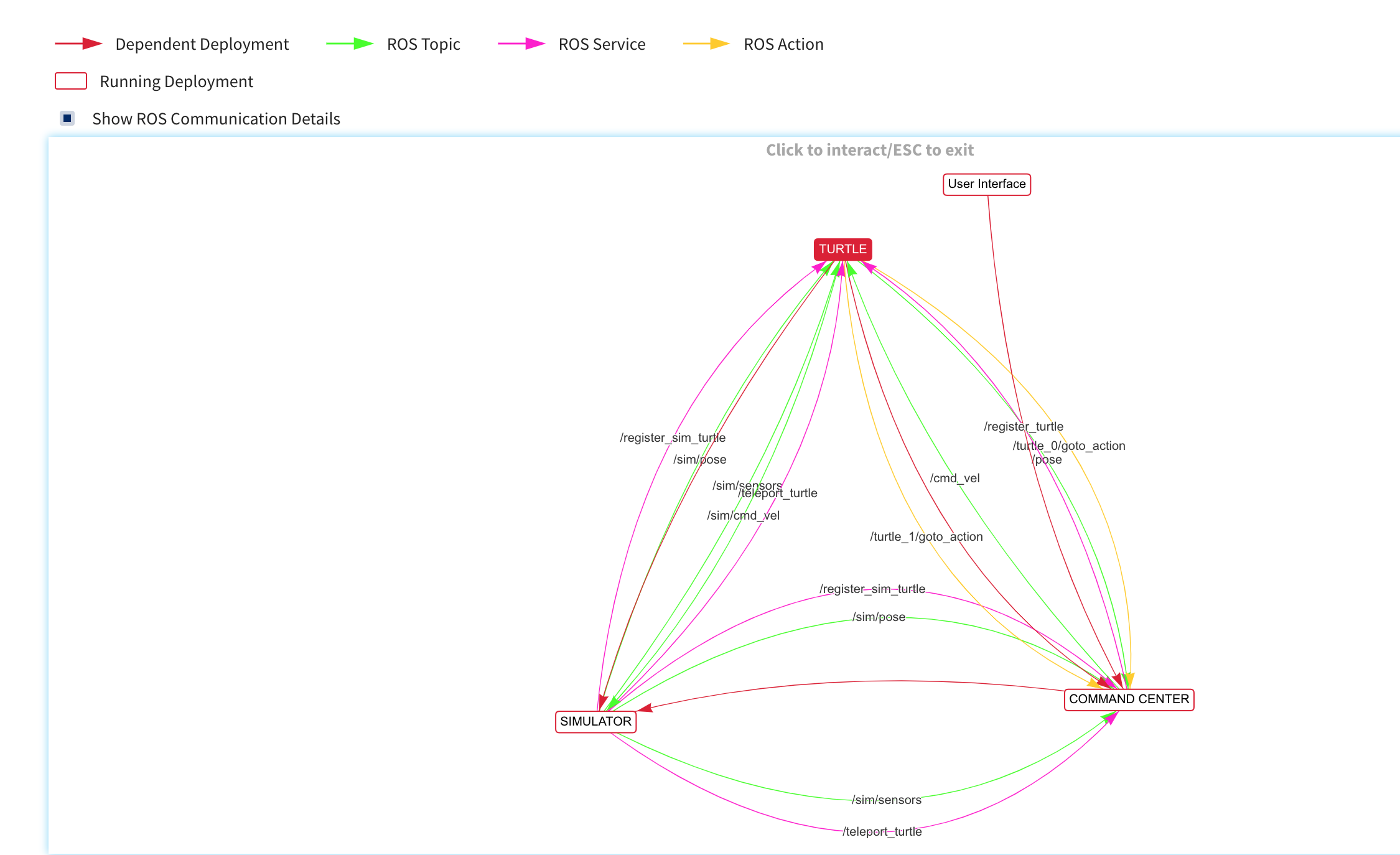

In this example, the TURTLE package listens to the command /turtle_0/goto_action from COMMAND CENTER.
You may click anywhere near a dependency graph (ensure you click anywhere only
in the blue color highlighted checkbox) to enlarge or shrink the graph. Press
the ESC key to exit after adjusting the graph’s size.
