Source Code Repository

You can create packages using the source code from a private git repository. A source secret allows rapyuta.io to access a private git repository or a git repository with self-assigned or untrusted SSL certificate.

The two types of source secrets are:

  1. Basic authentication
    authenticate using either git access token or your git username and password.
  2. SSH authentication
    authenticate using private SSH key of a git repository.

Creating source secret

To create a source secret for the private git repository whose source code you want to use for creating a package, follow the steps:

  1. On the left navigation bar, click SECRETS.
  2. Click ADD NEW SECRET.
  3. Under SELECT SECRET TYPE, click Source secret.
  4. In the Name box, enter a name for the source secret. For instance, you may name the source secret as source-secret-name
    Ensure that the name should be no greater than 253 characters. It must consist of lower case alphanumeric characters or hyphen -, and it must begin and end with an alphanumeric character.
  5. You may grant access via either your git username and password or the repository’s git access token. Select Basic Authentication from the Authentication Type drop-down list.
    1. For authenticating via your git username and password, select Password.
      1. In the Username box, enter your git username.

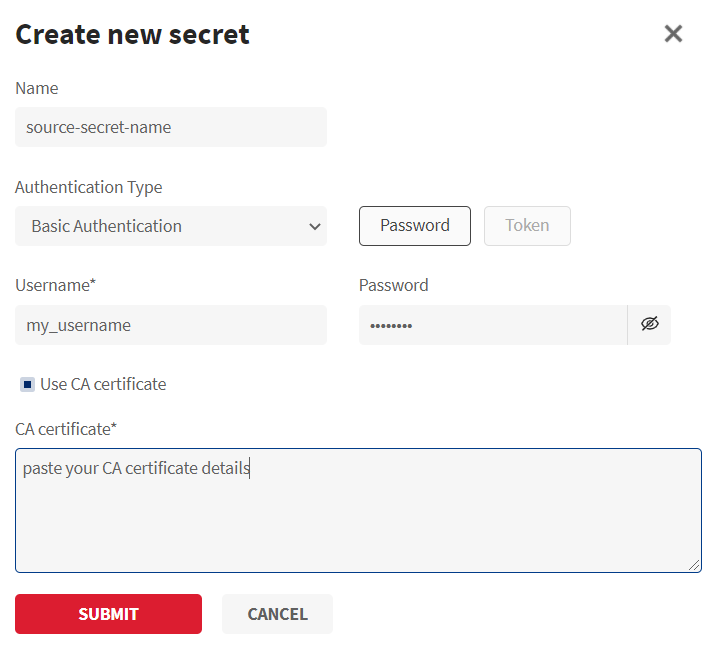

      2. In the Password box, enter your password. Basic auth via password
    2. For authenticating via the repository’s git access token, select Token
      1. In the Token box, provide the corresponding git access token
  6. If you want to grant access via SSH key of your git repository, select SSH Authentication from the Authentication Type drop-down list.

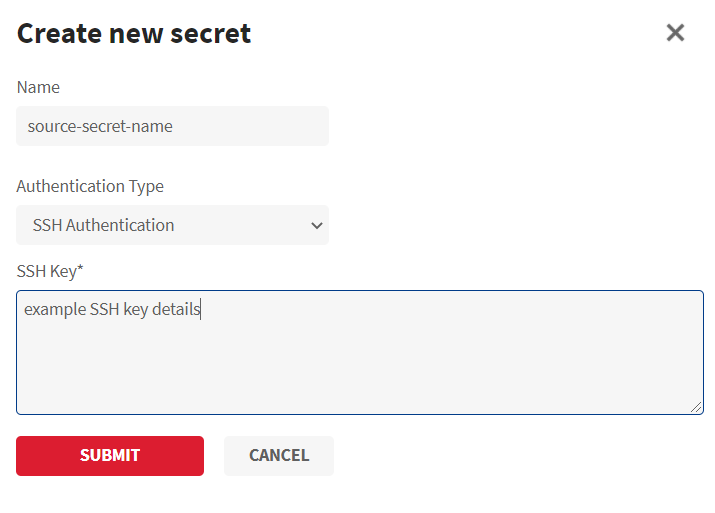

    1. In the SSH Key box, provide the private SSH key of your git repository. SSH authentication
  7. The Source URL patterns is a three part value.
    1. The first part is the protocol of your git server. You can choose from distinct protocols such as *:// , git:// , http:// , https:// , and ssh://
    2. The second part is a valid hostname and IP address such as github.com or bitbucket.org
    3. The third part is either a valid path to the git repository or * (wild card character).
      To add additional URL patterns, click Add URL pattern.
  8. Click Submit.

The Source URL pattern lets you specify your git repository URL pattern. The Build Engine will match the git repository URL that you will provide while adding a package to the source URL pattern to use the corresponding source secret to build the package. Alternatively, it is a regular expression representing git repositories’ URLs.

A source url pattern consists of the following segments:

  1. protocol your git server communicates with such as http:// , https://, git:// , ssh:// , or *://
  2. valid hostname or IP address such as github.com or bitbucket.org or *
  3. path to the git repository or Bitbucket repository or /*

The character * is a wild card character popular in regular expressions.

Source URL patterns match only git repository URLs that conform to RFC3986. For example https://github.com/rapyuta/io_tutorials.git is a valid match, whereas git@github.com:rapyuta/sample.git is an invalid match. Moreover, it is discouraged to include a username and password components in a URL pattern.
