Object Store Deployment Walkthrough

Learning Objective

The walkthrough demonstrates how a user can deploy software to the cloud and leverage rapyuta.io persistent storage. For this, the walkthrough will use the popular opensource S3 compatible object store, MinIO.

Create MinIO File Server Package

To add the MinIO File Server package, follow the below steps or click the below button:

Import Package
  1. On the left navigation bar, Click CATALOG
  2. Click ADD NEW PACKAGE.
  3. The name of the package is MinIO File Server
  4. The version of the package is set to 1.0.0 by default.
  5. Ensure Is a singleton package is not selected.
  6. Ensure Is a bindable package is selected.
  7. Write a summary of the package in the Description box. The package stores images, videos, and other unstructured data files in an object-store.
  8. Click NEXT.
  9. The name of the component is MinIO_FS
  10. Select Cloud as Component Runtime.
  11. De-select Is ROS Component.
  12. Ensure the value of Replicas to run the component is set to 1
  13. The name of the executable is minio_executable
  14. Select Docker for Executable Type.
  15. In the Docker image box, enter rrdockerhub/minio-server
  16. To expose the file server application publicly over the internet, create a network endpoint by clicking Add Endpoint.
    1. The name for the endpoint is FileStorage
    2. Select Exposed externally checkbox.
    3. Select HTTPS/WSS for Protocol.
    4. In the Port box, the default value is 443, and it cannot be modified.
    5. In the Target Port box, enter 9000
  17. To restrict access to the publicly available file server application, add the below CONFIGURATION PARAMETERS: MINIO_SECRET_KEY and MINIO_ACCESS_KEY.
    1. Click Add Parameter.
    2. In the Name box, enter MINIO_SECRET_KEY
    3. Similarly, add another parameter MINIO_ACCESS_KEY
  18. Click NEXT > CONFIRM PACKAGE CREATION.

Deploy MinIO File Server Package

Without Persistent Volume

Create transient storage by deploying the MinIO file server without adding a persistent volume to it. The transient storage is lost on intermittent failures, or when the deployment is stopped. So, the data saved in temporary storage is permanently lost. This example is only for testing purposes and gives no guarantee of your data.

To deploy MinIO File Server package without persistent volume, follow the below steps:

  1. Click CATALOG > Select MinIO File Server package > Click Deploy package.
  2. The Name of deployment is No Data Permanence
  3. Under COMPONENT DETAILS, the Parameters for MinIO_FS (Cloud runtime) are:
    1. In MINIO_SECRET_KEY box, enter a value for the secret key say secretphrase, and the secret key must be between 8 and 40 characters.
    2. In the MINIO_ACCESS_KEY box, enter a value for the access key say accesskey and ensure the access key must be at least three characters.
  4. Click CREATE DEPLOYMENT > Confirm.

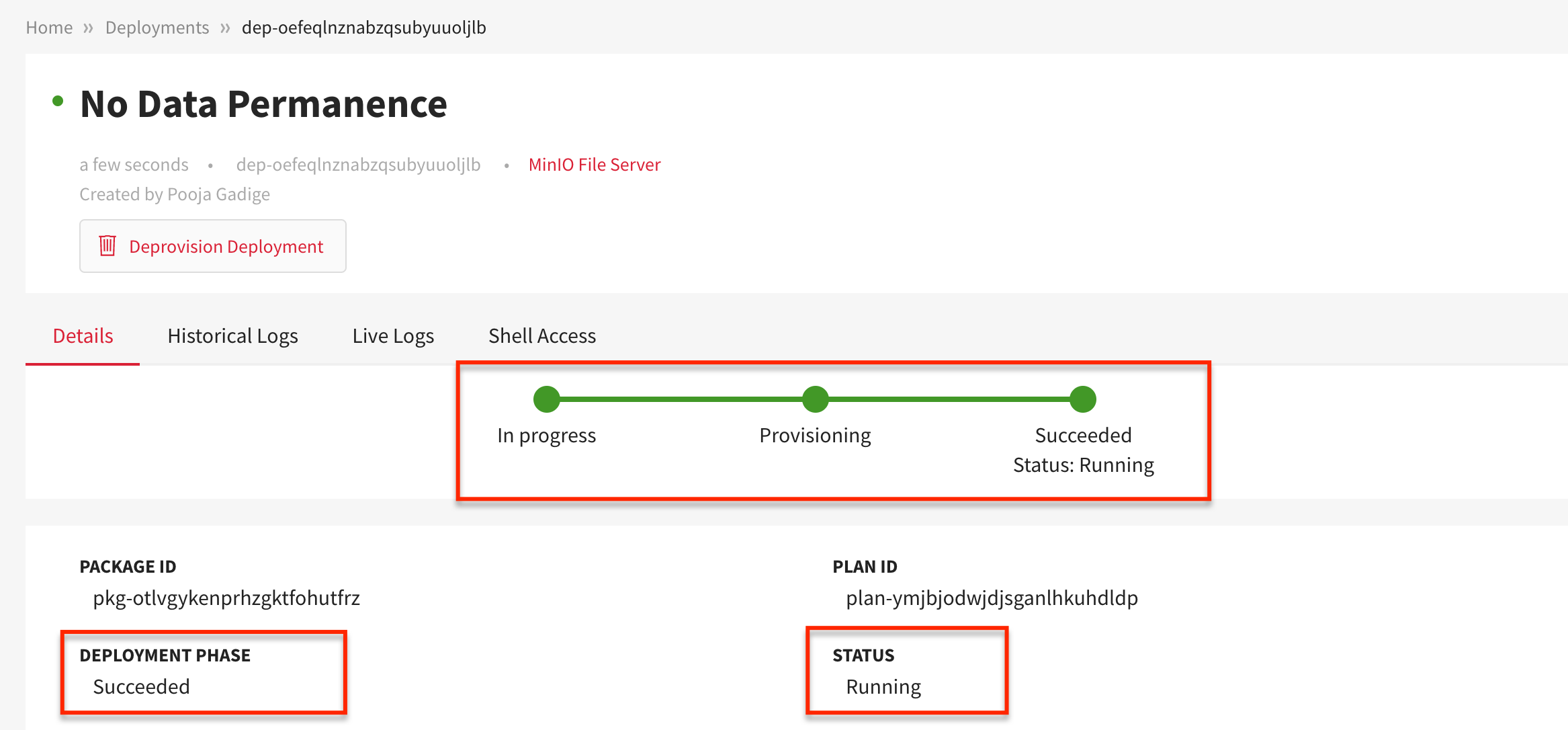

You will be redirected to the newly created deployment’s Details tab. When the green-colored bar moves from In progress to Succeeded, it indicates that the DEPLOYMENT PHASE has Succeeded and the STATUS is Running. Then, the package is deployed successfully.

No Data Permanence Deployment

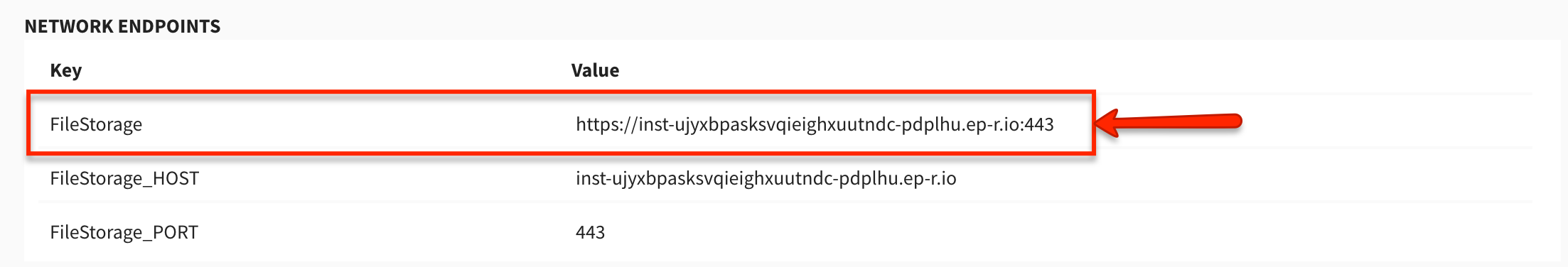

To access the object storage at the provided endpoint, copy and paste the highlighted URL address in a new browser tab.

File Storage Endpoint

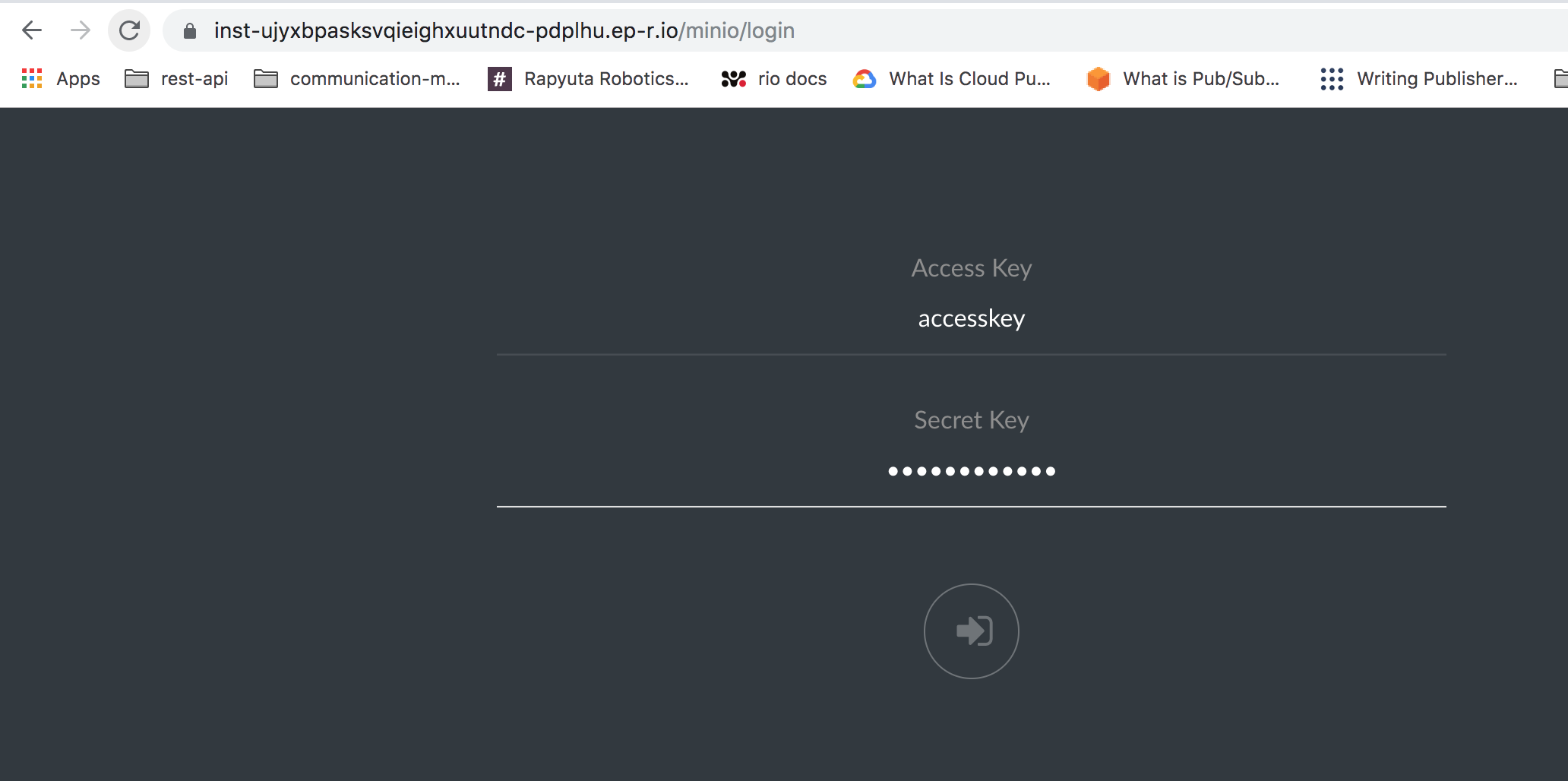

In the Access Key and Secret Key boxes, enter the same access key and secret key that you provided while creating the above deployment, respectively.

MinIO Dashboard Sign In

You can now access the dashboard of the MinIO object store at the provided endpoint. You can add buckets where unstructured data files can be stored.

Since this deployment does not use a persistent volume, any files that you add on the server will be lost when you stop (or de-provision) the deployment of the package.

With Persistent Volume

To preserve data files saved on the file server, deploy a persistent volume and add it to the file server.

To deploy the Rapyuta IO Persistent Volume package, follow the below instructions:

  1. On the left navigation bar, click CATALOG.
  2. Select the public package, Rapyuta IO Persistent Volume, from Storage packages.
  3. Click Deploy package.
  4. The Name of deployment is Volume Storage
  5. Ensure the disk type parameter of the volumeComponent is SSD. It provisions an SSD for block storage.
  6. Ensure the capacity parameter of the volumeComponent is 32GiB. It refers to the size of block storage.
  7. Click CREATE DEPLOYMENT > Confirm.

To add Volume Storage to an instance of the MinIO file server, follow the steps:

  1. On the left navigation bar, click CATALOG.
  2. Select MinIO File Server package > Deploy package.
  3. The Name of deployment is Data Permanence
  4. For MINIO_SECRET_KEY provide the value secretphrase, and for MINIO_ACCESS_KEY provide the value accesskey respectively.
  5. Click Add volume.
  6. Under Deployment, select the persistent volume deployment that you created, Volume Storage
  7. Select the name of the cloud component that needs persistent volume from the Applicable Component drop-down list. In this example, choose the MinIO_FS component.
  8. Mount the persistent volume on a mount path. Since MinIO stores data files at /data, provide /data as the value of Mount path.
  9. Click CREATE DEPLOYMENT > Confirm.

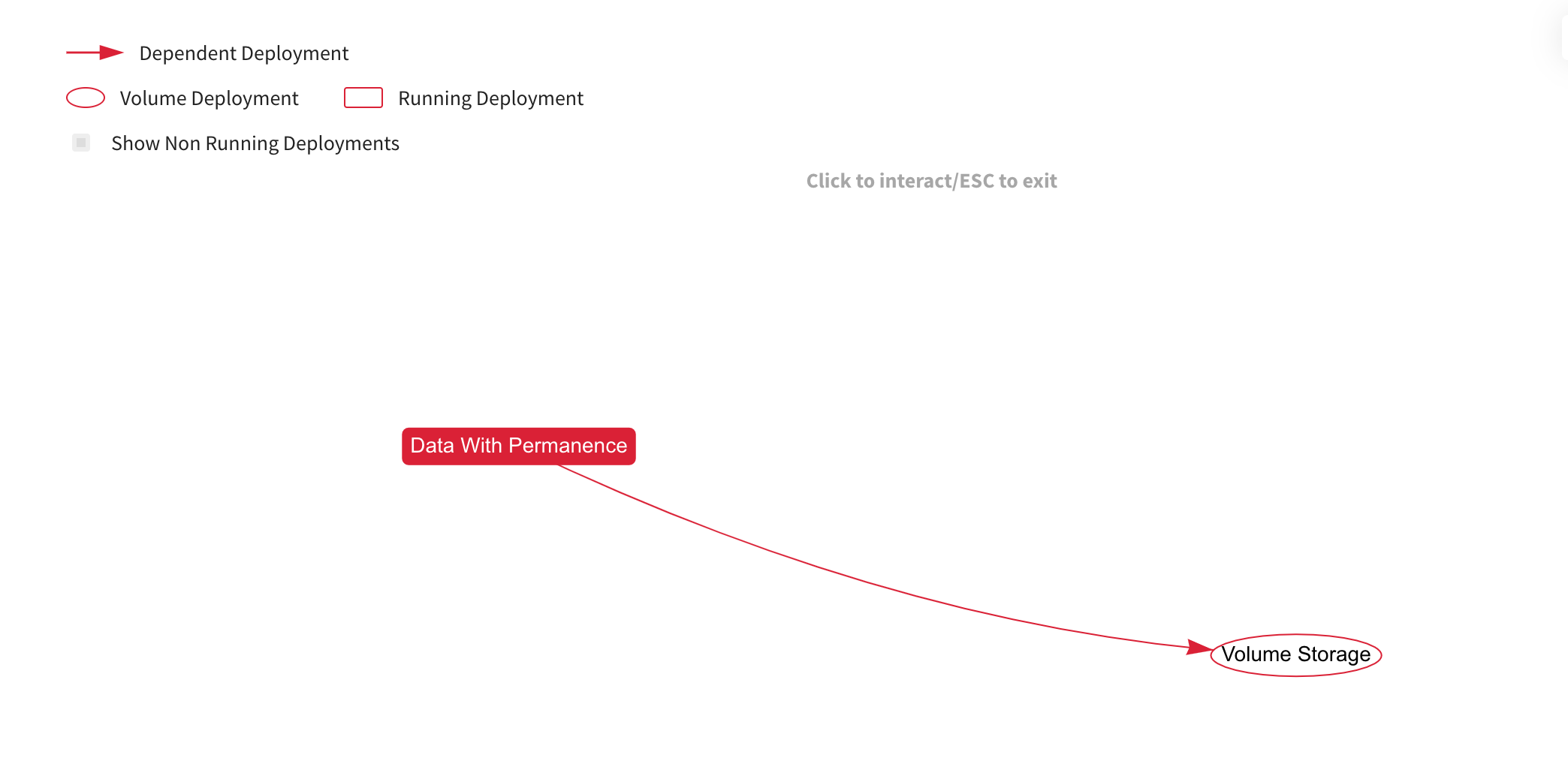

The corresponding dependency graph looks like: Dependency Graph

Thus, the object store will be deployed with a persistent volume mounted at path /data. The persistent volume enables the file server to preserve data stored in it even if its deployment is stopped. It means that the stored data will be retained even when the deployment of the MinIO File Server package is de-provisioned and provisioned again with the same persistent volume.

A couple of observations made are:

  1. If Data Permanence deployment is stopped, the Volume Storage deployment will continue to remain deployed.
  2. If both Data Permanence and Volume Storage are running, you cannot stop Volume Storage before stopping Data Permanence because the volume is in use actively.
  3. The volume deployments of Persistent Volume package can be added to only one deployment at a given time.
  4. The number of volumes attached to a component must be less than or equal to the sum of all the cores of all executables of a component. Learn more in package internals.
