Build Creation and Deletion

Creating Build by Catkin recipe

Follow the below steps to create the build by catkin recipe :

  1. On the left navigation bar, click BUILDS.
  2. Click on ADD NEW BUILD.

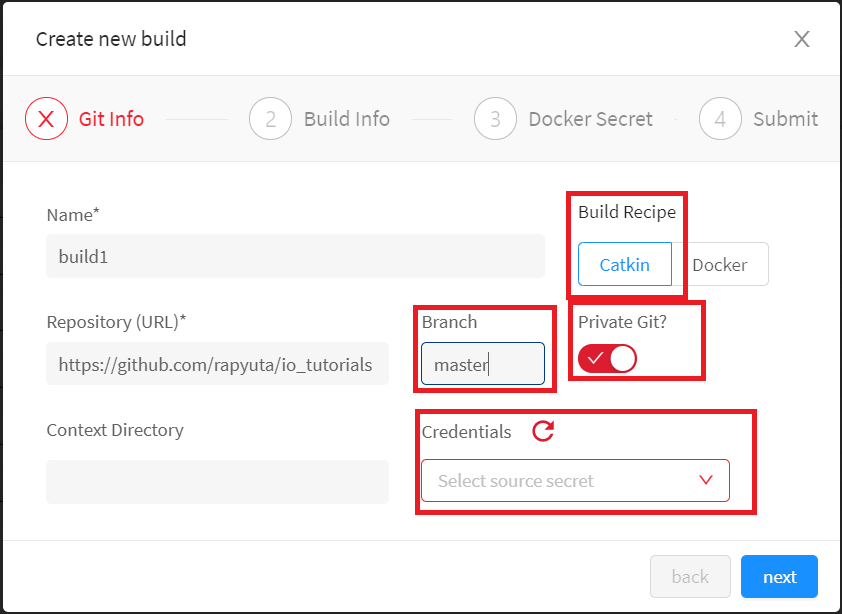

  3. Under Git info tab, do the following.
    a. In the Build Name field, enter a name for the build.
    b. Select the build recipe as Catkin.
    c. In the Repository (URL) field, enter the URL of the git repository from which you want to create a build. For example, https://github.com/rapyuta/io_tutorials.
    d. Optionally, if the git repository is a private git, then click the Private Git radio button and select the credential from the Credential drop-down menu. If you have not created any secret for the repository, create a source secret.
    e. Optionally, you can specify the Context Directory field by entering the path of the directory where you want to create the build.
    f. Click Next. goo

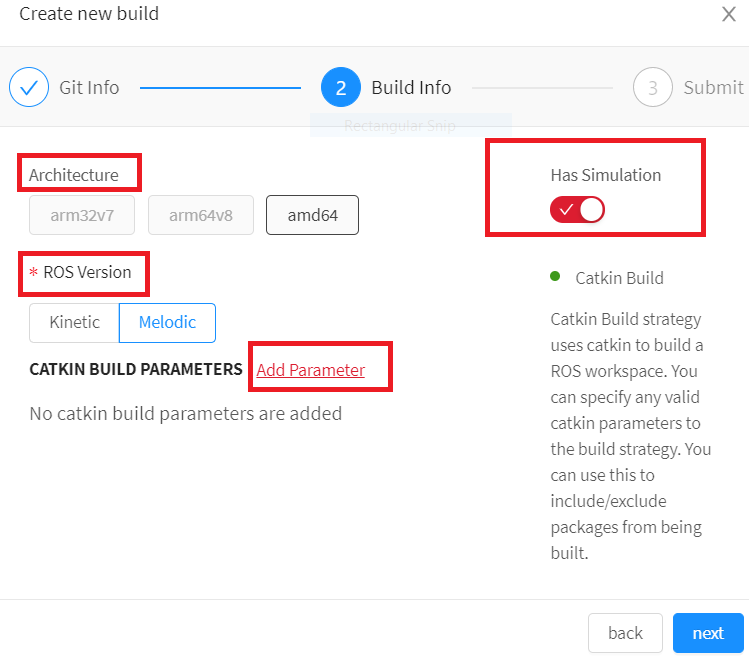

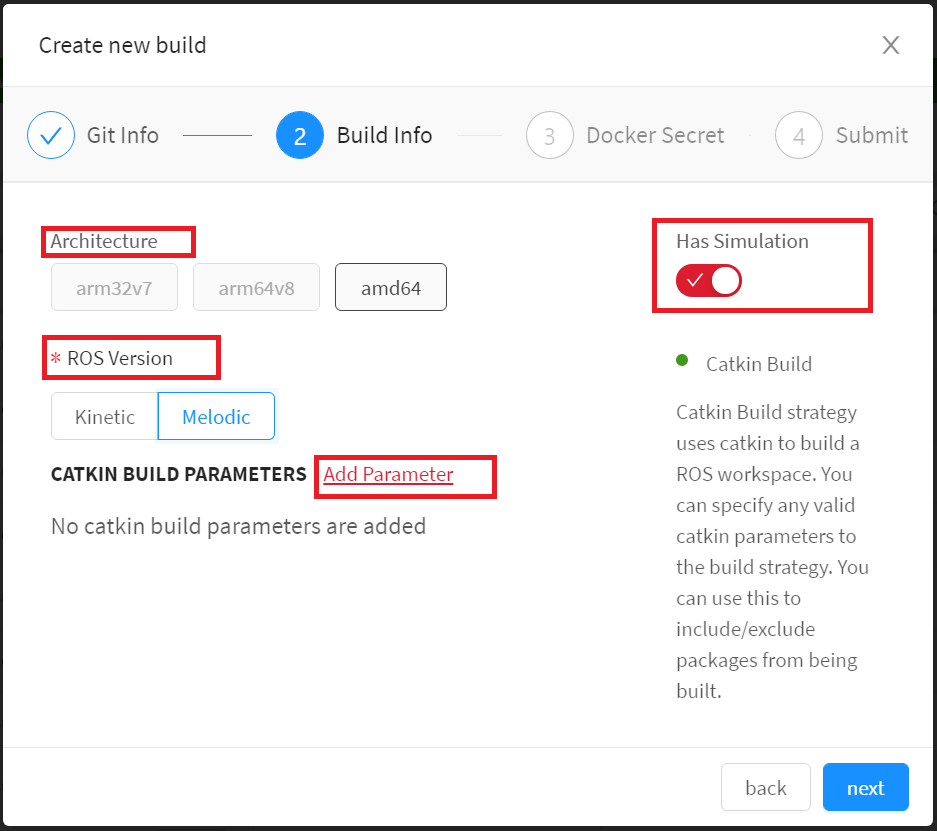

  4. Under the Build Info tab, do the following.
    a. In the Architecture area, select the processor architecture for the build. The available options are:
    • arm32v7
    • arm64v8
    • amd64
    b. Optionally, if the build has a simulation option, click the Has Simulation radio-button.
    c. In the ROS Version area, select the ROS version. The available options are:
    • Kinetic
    • Melodic
    d. Optionally, to add ROS parameter to the build, in the CATKIN BUILD PARAMETERS area, click Add Parameter. For more information about the Catkin parameters, click here.
    e. Click Next. goo
  5. The rapyuta.io platform allows you to push and save the build image to an external docker registry.To push and save the build image to the private registry, do the following.
    a. Under the Docker Secret tab, click the Docker Push Secret toggle button.
    b. In the Image Repository field, enter the URL of the private repository where you want to push and save the image for later usage. For example, docker.io/your-username/repo-name.
    c. From the Push secret drop-down menu, select the secret for the repository. If you have not created any secret for the repository, create a secret.
    d. Click Next. goo The build is created. To view the details of the build, click here.

Creating Build by Docker recipe

Follow the below steps to create the build by docker recipe :

  1. On the left navigation bar, click BUILDS
  2. Click on ADD NEW BUILD.

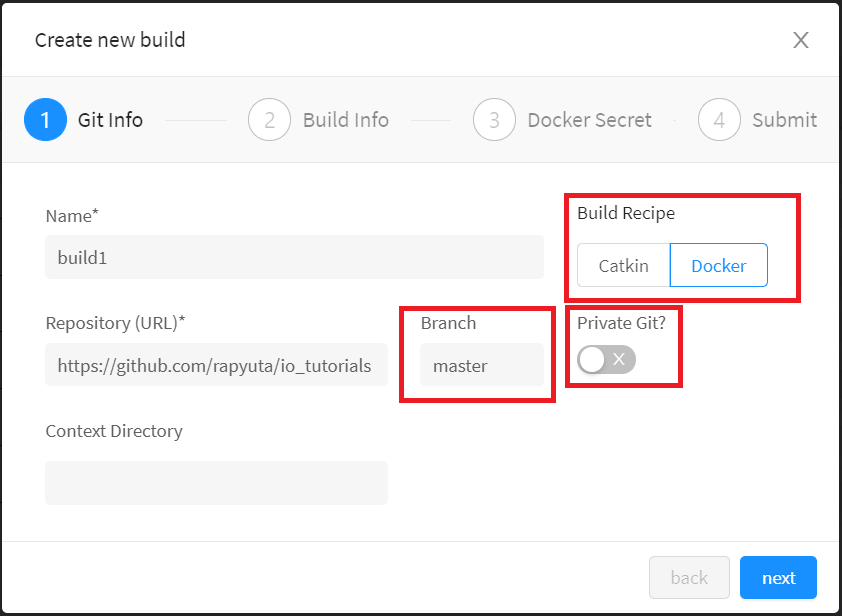

  3. Under Git info tab, do the following.
    a. In the Build Name field, enter a name for the build.
    b. Select the build recipe as Docker.
    c. In the Repository (URL) field, enter the URL of the git repository from which you want to create a build. For example, https://github.com/rapyuta/io_tutorials.
    d. Optionally, if the git repository is a private git, then click the Private Git toggle button and select the credential from the Credential drop-down menu. If you have not created any secret for the repository, create a source secret.
    e. Optionally, you can specify the Context Directory field by entering the path of the directory where you want to create the build.
    f. Click Next. goo

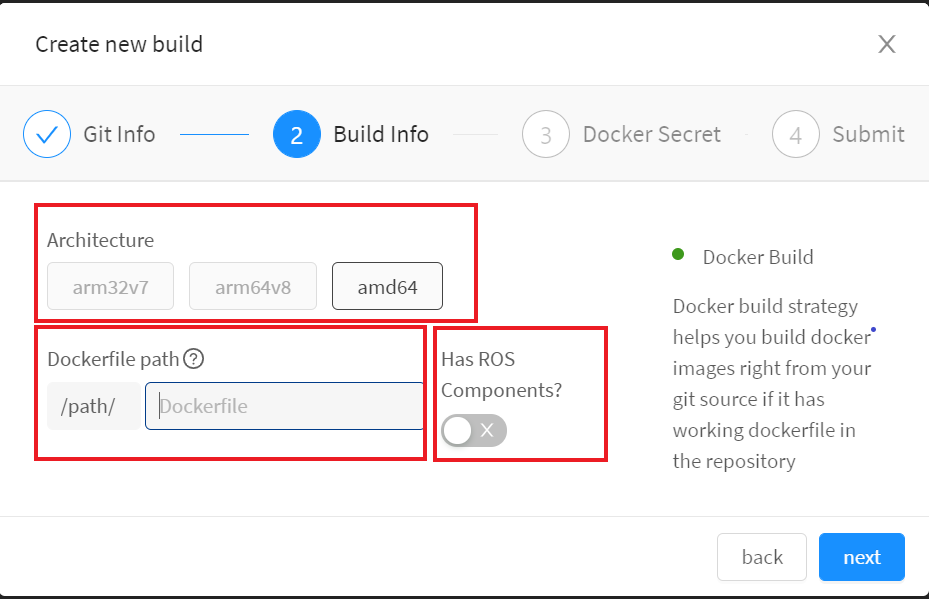

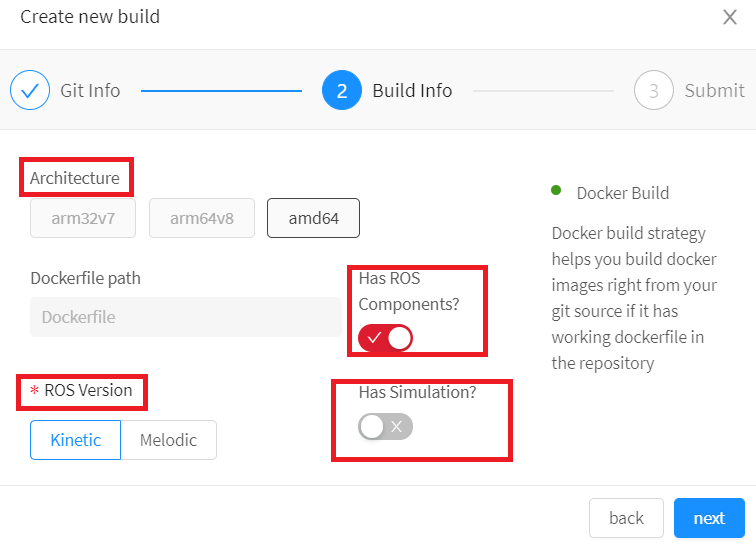

  4. Under the Build Info tab, do the following.
    a. In the Architecture area, select the processor architecture for the build. The available options are:
    • arm32v7
    • arm64v8
    • amd64
    b. In the Dockerfile path field, type the path of the docker file that contains the source code.
    c. Optionally, if the build has ROS component, then click the Has ROS Components radio-button, select the ROS version as either Kinetic or Melodic, and if the build has a simulation option, click the Has Simulation radio-button.
    d. Click Next. goo
  5. The rapyuta.io platform allows you to push and save the build image to an external docker registry or to pull an image from a private repository. To push or pull a docker image file, do the following.
    a. Under the Docker Secret tab, click the Docker Push Secret toggle button.
    b. In the Image Repository field, enter the URL of the private repository where you want to push and save the image for later usage. For example, docker.io/your-username/repo-name.
    c. From the Push secret drop-down menu, select the secret for the repository. If you have not created any secret for the repository, create a secret.
    d. Optionally, to pull a secured docker image to the docker file, click the Docker Pull secret toggle button and select the secret for the repository. If you have not created any secret for the repository, create a secret.

    Docker Pull Secret field is only available if you are creating the build by docker recipe.

    e. Click Next. goo The build is created. To view the details of the build, click here.

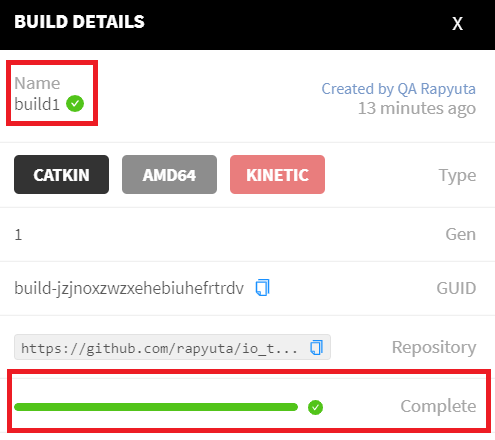

You can see the progress of the build, by clicking on the Build created in the Builds page. Click on SHOW MORE to get more details about the build, it will take you to the Details tab of the build.

Viewing Build Details

After you have created a build by either Catkin or Docker recipe, you can view the details of the available builds in your project. Perform the following steps to view the details of a build.

  1. On the left navigation bar, click BUILDS. All the available builds of the projects are displayed. goo The following table displays the details of the available builds.

    Field Description
    Name/ID Provides the name of the build.
    Status Provides the following status of the build.
    • BuildInProgress: Displays when the build creation process is in progress.
    • Complete: Displays when the build creation process has been successfully completed.
    • BuildFailed: Displays if the build creation process has failed.
    Started Provides the time duration when the build creation process has started.
    Repository Provides the repository from which the build has been created.
    Action Allows you to delete, trigger, or clone a build.

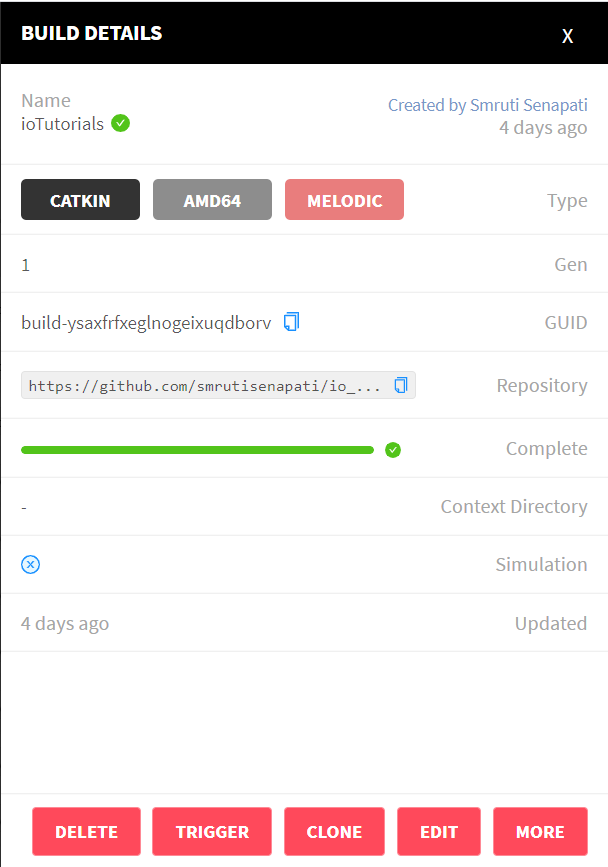

  2. To view the details of a particular build, click the build. The following image is displayed. goo

The Build Details page allows you to do the following.

  • Click Delete to delete the build.
  • Click Trigger to trigger a build.
  • Click Clone to clone a build within the same or to different projects.
  • Click Show More to view the details of the build and view the build log.

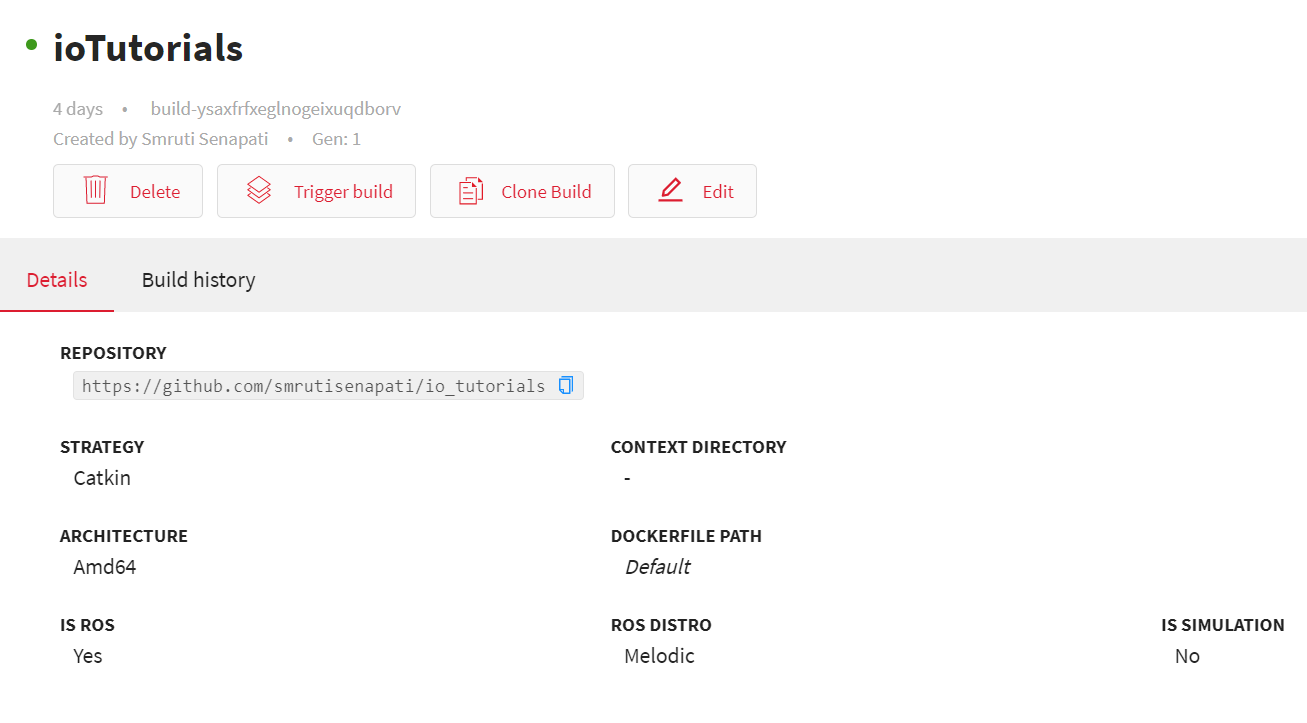

After clicking Show More, the following image is displayed. goo

Deleting the build

Follow the below steps to delete the build :

  1. On the left navigation bar, click BUILDS. It displays all the builds available for a project.
  2. Select the build that you want to delete.
  3. Click Delete.
  4. Confirm on the build deletion message.

Please note that if the build Status is BuildInProgress, then user will not be able to Delete the build. Deletion of BuildInProgress Status build will be failed with the error message : can’t delete the build since its corresponding build request is still in progress.
